DOT Hazard Class Information

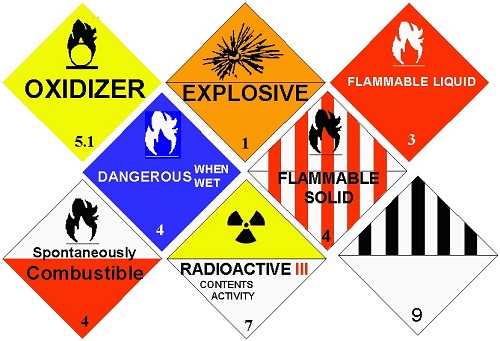

DOT Graphic

These are labels or placards that convey hazard information for containers or shipments of hazardous materials. Each label has a characteristic color pattern, pictogram, and hazard class number. There are nine different hazard classes under DOT.  Click on the links below to see examples for each hazard class.

DOT Hazard Classes
Hazard Class Division Label Description

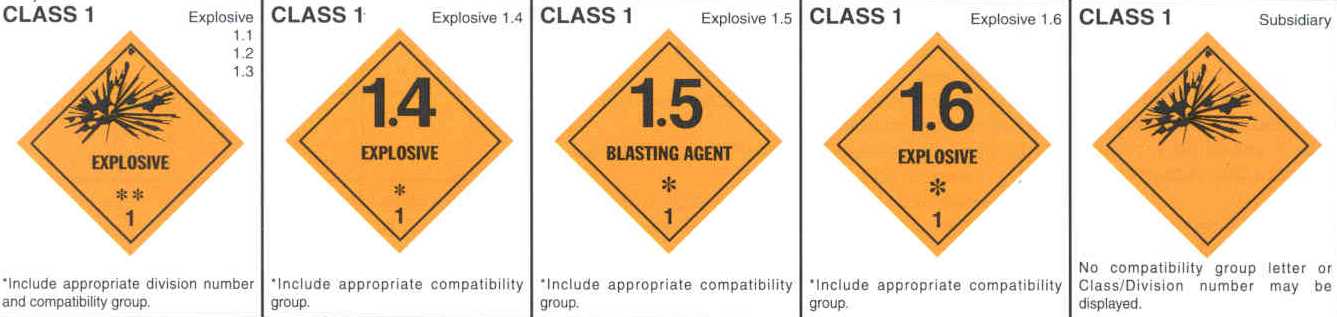

Class 1 1.1-1.6 Orange Explosives

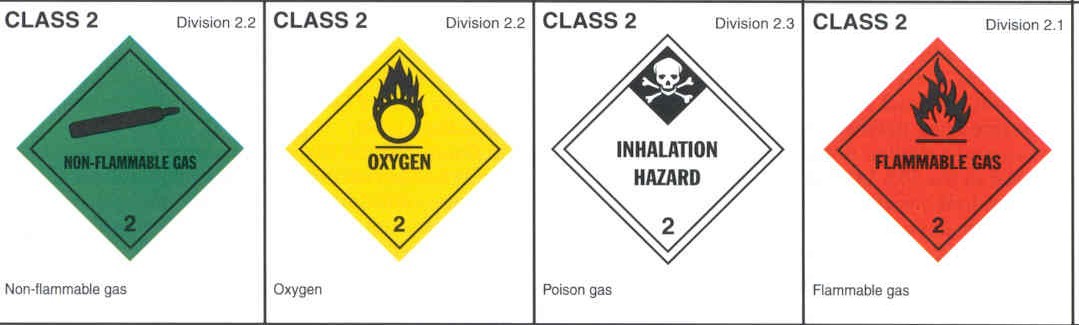

Class 2 2.1 red Flammable Gases
2.2 green Non-Flammable Gases
2.3 white Poison/Toxic Gases
Class 3 n/a red Flammable Liquids

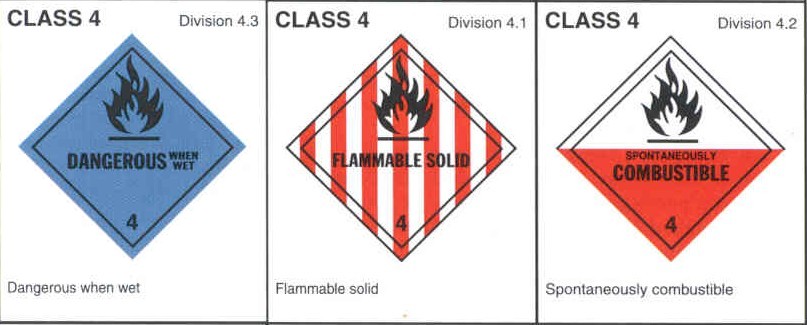

Class 4 4.1 red striped Flammable Solids
4.2

white top, red bottom

Spontaneously Combustible Materials
4.3 blue Dangerous When Wet

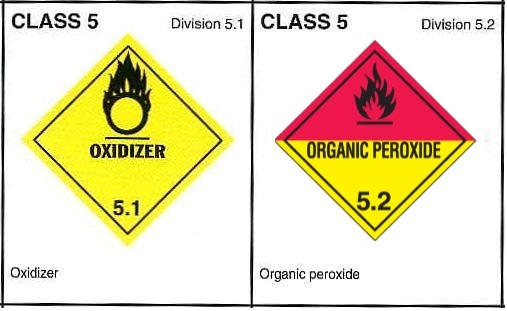

Class 5 5.1 yellow Oxidizers
5.2 red top, yellow bottom Organic peroxides
Class 6 6.1 white Poison/Toxic
6.1 white Keep Away From Foodstuffs
6.2 white Infectious Substance

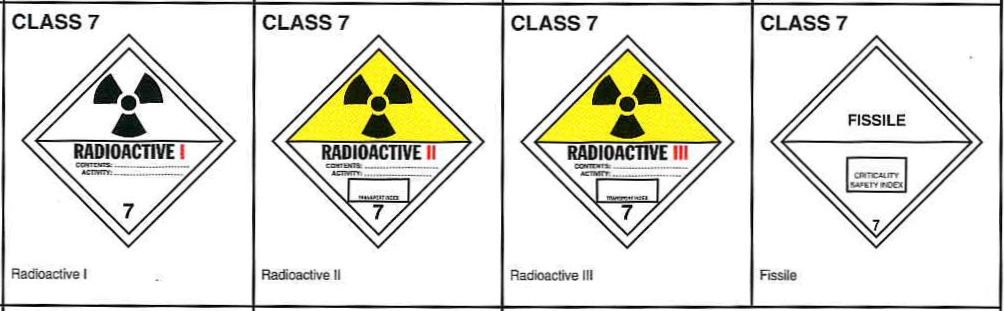

Class 7 n/a yellow top. white bottom Radioactive

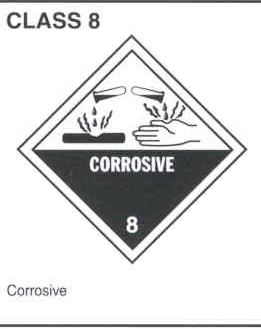

Class 8 n/a white top, black bottom Corrosive

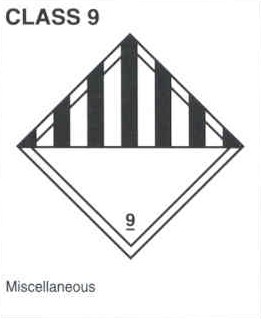

Class 9 n/a black-striped top, white bottom Miscellaneous
